Whitepaper: Engineering Double Ended Studs for Kenya’s Industrial & Infrastructure Growth
In high-stress mechanical assemblies, thermal cycling environments, and corrosive industrial atmospheres, traditional hex bolts often fall short. A double ended stud bolt (also known as a tap-end stud or dual-threaded stud) provides a critical mechanical advantage: it eliminates the rotational friction created by bolt heads during tightening, distributing axial clamping load evenly across mated flange faces and tapped block holes.
As Kenya continues its journey toward industrial transformation under the Vision 2030 roadmap, heavy infrastructure, energy expansion, and manufacturing plants require bolting solutions certified to rigorous international specifications. As a premier global double ended studs manufacturer and exporter serving Kenya, we deliver fully certified fasteners tailored for high-temperature steam lines, subsea oil terminals, heavy mining vehicles, and urban infrastructure developments throughout Nairobi, Mombasa, Kisumu, Eldoret, and Nakuru.
Engineering Insights: Information Gain — Unlike standard fully threaded rods, engineered double-ended studs feature distinct thread engagement lengths on each end separated by an unthreaded shank (land). The tap end is designed for permanent seating into cast iron or steel housings with an interference fit (such as sk2 tolerances per DIN 938/939), while the nut end accommodates standard hex nuts for rapid maintenance teardowns without damaging the internal block threads.
Localized Industrial Application Scenarios Across Kenya
1. Geothermal Energy Generation (Olkaria & Menengai)
Kenya is Africa’s leader in geothermal energy. The Olkaria geothermal fields present extremely harsh operating conditions: high-pressure steam laden with hydrogen sulfide (H2S), carbon dioxide (CO2), and high-temperature moisture. Standard carbon steel studs experience rapid Sulfide Stress Cracking (SSC). We manufacture and supply ASTM A193 Grade B7, B16, and Inconel 625 double ended studs that maintain high yield strength and stress-rupture resistance up to 538°C, preventing catastrophic steam line blowouts.
2. Oil & Gas Pipelines & Storage (MOMBASA to NAIROBI KPC)

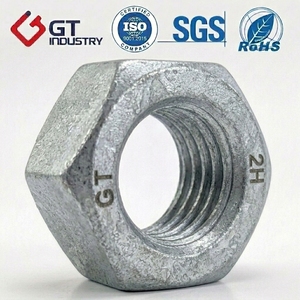

The Kenya Pipeline Company (KPC) network and the Kipevu Oil Terminal (KOT) in Mombasa handle millions of liters of refined petroleum products daily. Hydrocarbon storage tanks, manifold valves, and pumping stations demand reliable flanged connections. We supply ASTM A193 B7/B7M studs paired with ASTM A194 2H/2HM heavy hex nuts featuring PTFE/Xylan fluoropolymer coatings to resist atmospheric corrosion and aggressive chemical washdowns.
3. Marine & Offshore Port Facilities (Port of Mombasa & Lamu)
Salt spray and tropical high humidity at Kilindini Harbour and the Lamu Port (LAPSSET corridor) accelerate galvanic and marine pitting corrosion. Our marine portfolio includes SS316, Duplex 2205, and Super Duplex S32750 double ended flange studs. These materials feature a Pitting Resistance Equivalent Number (PREN) > 40, ensuring zero joint leakage for marine loading arms, offshore platform equipment, and shipbuilding hardware.
4. Heavy Mining & Construction (Kwale & Athi River)
From titanium mining in Kwale to limestone quarrying and cement manufacturing in Athi River and Bamburi, heavy machinery faces immense vibration, shear loads, and abrasive dust. We supply high-tensile Grade 10.9 and 12.9 wheel studs, stepped flange studs, and heavy axle double end studs built to absorb severe shock loads without thread stripping.
5. Agri-Processing & Automotive Assembly
Kenya’s tea processing factories in Kericho, sugar mills in Western Kenya, and vehicle assembly operations in Thika depend on precise mechanical connections. We deliver metric double-ended studs (DIN 938, DIN 939, DIN 835) in SS304/SS316 for food-grade hygienic washdowns and high-vibration engine assembly mounts.
Technical Comparison: Double Ended Stud Materials & Standards
Selecting the correct material grade and standard is critical to structural integrity, thread engagement safety, and life-cycle cost reduction. Below is a engineering matrix to assist Kenyan procurement officers and mechanical engineers:
| Standard Specification | Material Grade | Tensile Strength (Min) | Yield Strength (Min) | Recommended Application Environment |
|---|---|---|---|---|
| ASTM A193 | Grade B7 (Cr-Mo Steel) | 125 ksi (860 MPa) | 105 ksi (720 MPa) | High-pressure oil & gas flanges, steam piping, general valves. |
| ASTM A193 | Grade B16 (Cr-Mo-V Steel) | 125 ksi (860 MPa) | 105 ksi (720 MPa) | High-temperature power plants & geothermal steam (>500°C). |
| ASTM A193 / A320 | Grade B8 / B8M (SS304 / SS316) | 75 ksi (515 MPa) | 30 ksi (205 MPa) | Corrosive chemical processing, food machinery, marine mist. |
| ASTM A193 | Grade B7M / 2HM Nuts | 100 ksi (690 MPa) | 80 ksi (550 MPa) | Sour gas environments requiring NACE MR0175 compliance. |
| ASTM A320 | Grade L7 / L7M | 125 ksi (860 MPa) | 105 ksi (720 MPa) | Low-temperature & cryogenic applications down to -101°C. |
| UNS S31803 / S32205 | Duplex 2205 Stainless | 95 ksi (655 MPa) | 65 ksi (450 MPa) | Seawater pumps, coastal desalination, chloride-rich media. |
| UNS N06625 | Inconel 625 Alloy | 120 ksi (827 MPa) | 60 ksi (414 MPa) | Extreme acidic geothermal brine, chemical reactors. |
Advanced Surface Engineering & Anti-Corrosion Protection
In coastal marine regions like Mombasa or geothermal steam zones around Naivasha, untreated steel fasteners suffer from rapid galvanic and atmospheric breakdown. To extend service lifespan and prevent galling during breakout maintenance, we provide specialized surface treatments:
- PTFE / Xylan Fluoropolymer Coatings: Engineered low-friction coatings providing up to 3,000 hours of ASTM B117 salt spray resistance. Essential for off-shore and chemical exposure.
- Hot-Dip Galvanizing (HDG - ASTM A153): Provides a thick sacrificial zinc layer (over 50 microns) for outdoor infrastructure, rail bridges, and structural steel connections.
- Zinc-Nickel Plating: Superior thin-film protection (12-15% Ni content) offering excellent micro-crack resistance for automotive and hydraulic stud applications.
- Passivation & Electropolishing: Restores the passive chromium oxide layer on SS304/SS316 studs for hygienic agri-processing applications.
Local Market Trends & KEBS PVoC Import Compliance for Kenya
Kenyan industrial importers and EPC contractors must navigate specific regulatory and logistics considerations when purchasing imported industrial fasteners:
1. Kenya Bureau of Standards (KEBS) PVoC Compliance
All imported stud bolts and heavy fasteners shipped to Mombasa or Nairobi must comply with the Pre-Export Verification of Conformity (PVoC) to Standards Programme. As an experienced exporter to East Africa, every order is processed with complete EN 10204 3.1 Material Test Reports (MTRs), chemical composition certificates, and physical hardness test reports required by inspection agencies (such as SGS, Intertek, or Bureau Veritas) to ensure smooth issuance of the Certificate of Conformity (CoC) before customs clearance.
2. Shift Toward High-Yield & Corrosion-Resistant Alloys
With Kenya’s green energy push, procurement managers are increasingly shifting away from generic carbon steel threaded rods toward engineered double-ended studs in Grade B7M, Duplex, and Nickel alloys. Investing in high-yield fasteners significantly reduces Total Cost of Ownership (TCO) by eliminating unplanned downtime caused by joint failure or bolt shearing.
Enterprise Advantages: Why Partner With Us?
As a specialized global manufacturer, our Mumbai-based manufacturing hub offers strategic logistics advantages for Kenyan clients. Direct shipping lanes from Jawaharlal Nehru Port (JNPT) to Kilindini Port, Mombasa, ensure short transit times and cost-effective sea freight solutions.
100% Quality Assurance
Every heat lot undergoes Positive Material Identification (PMI), ultrasonic testing, micro-hardness verification, and thread optical comparator inspection.
Custom Thread Machining
We produce Metric Coarse/Fine, UNC, UNF, 8UN, and stepped double-ended studs to exact customer blueprints with tight tolerances (6g/6H, 2A/2B, 3A/3B).
Seaworthy Export Packing
Studs are coated with anti-rust oil, wrapped in VCI corrosion-inhibitor film, packed in heavy-duty wooden cases, and steel-banded to withstand ocean transport.
